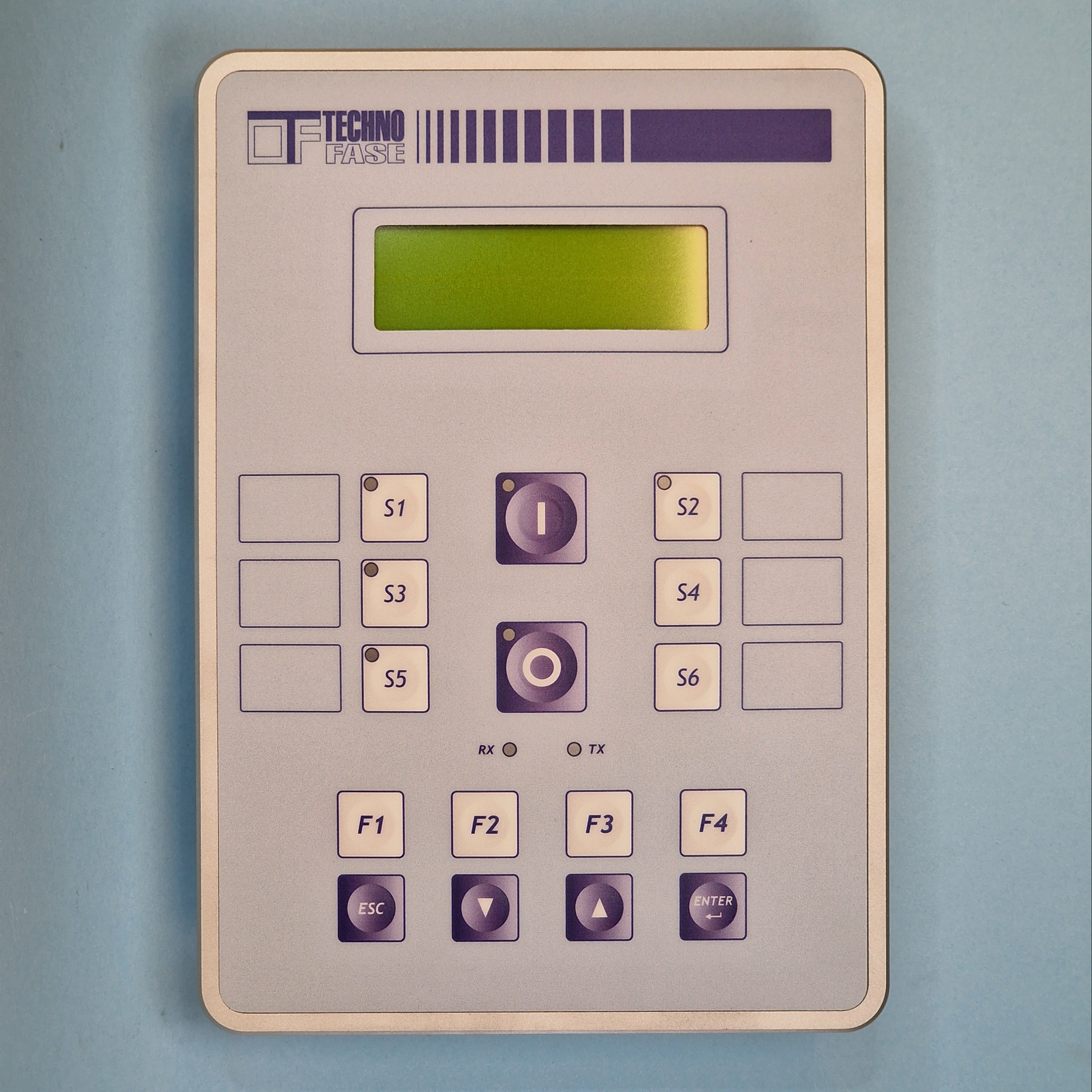

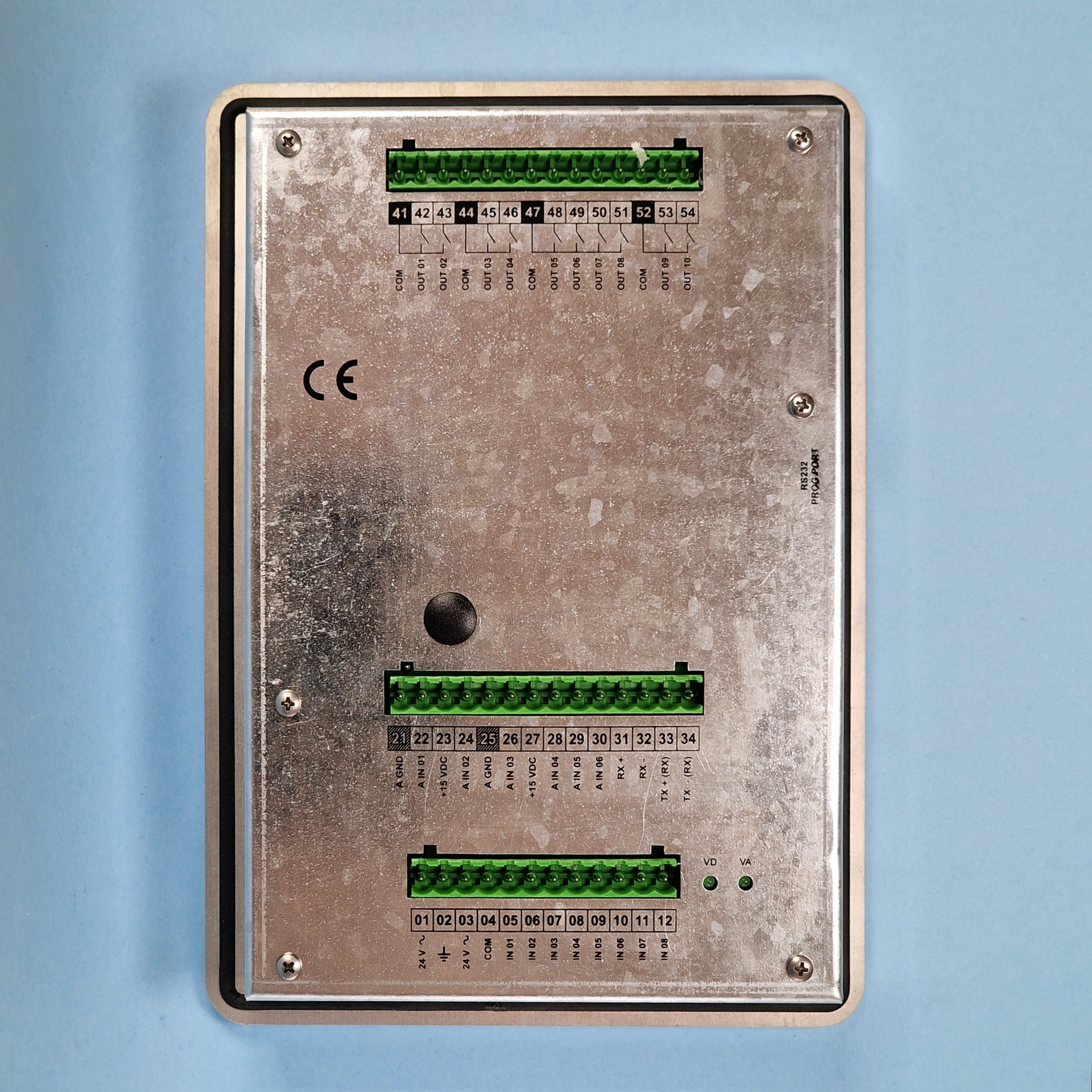

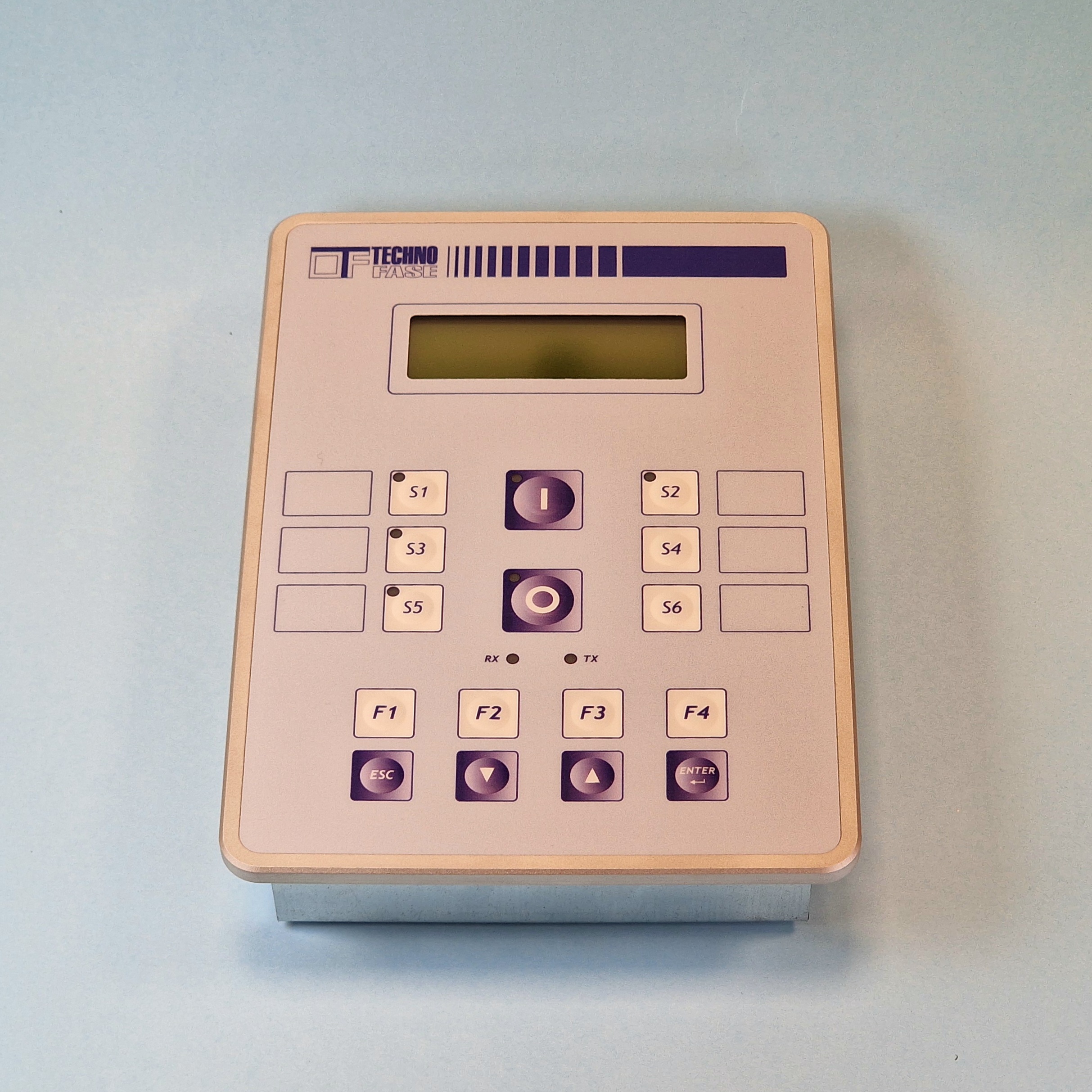

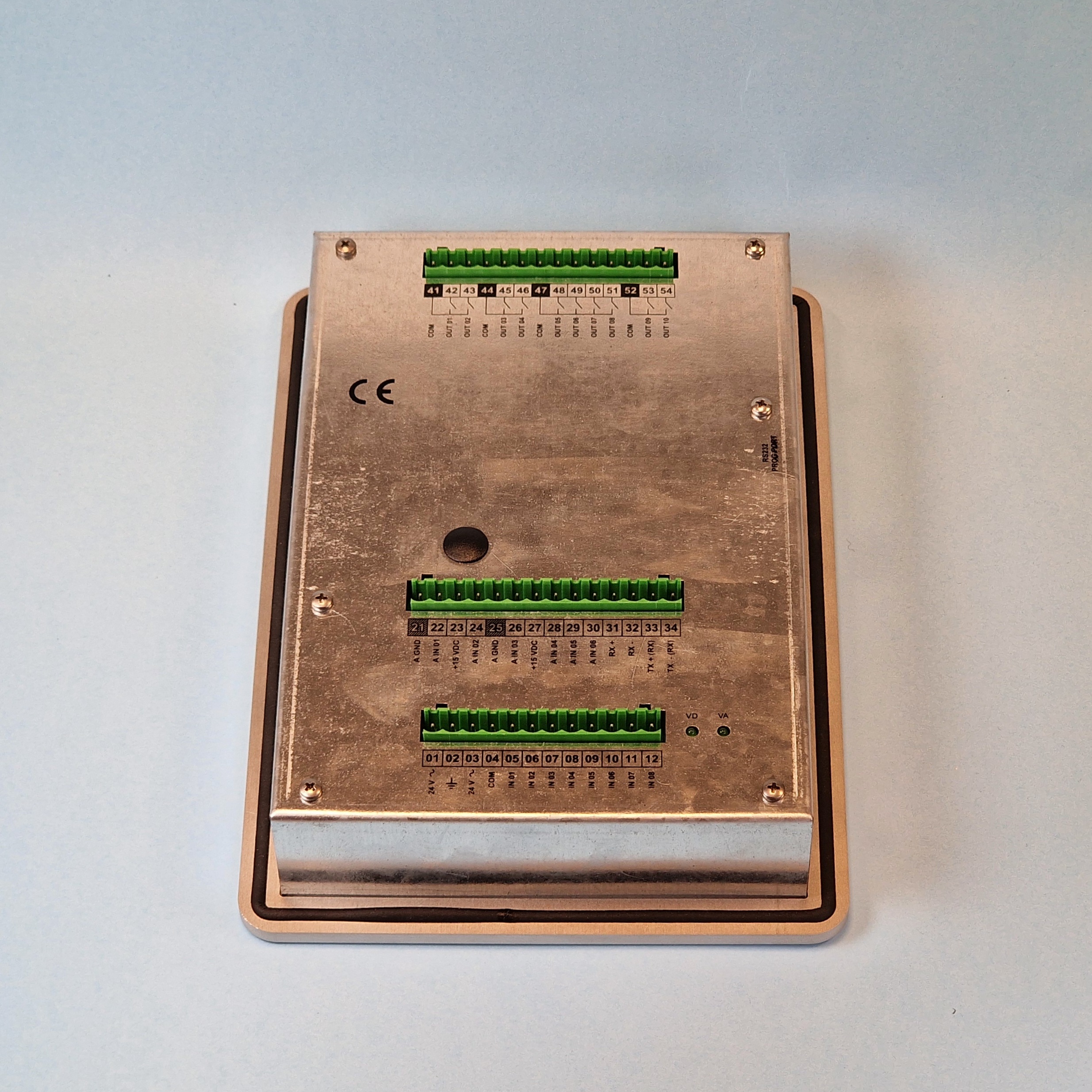

RCS1008
The RCS1008 controller is one programmable device with the main specification: | |
Supply: | 20-30 VDC 0.4A |
Analog Input: | 6 (Voltage or current) @ 12 Bit |
Digital Input: | 8 (10-30VDC Optoisolated) |
Relay Output: | 10 (3A 230 VAC Relays) |
Display: | 20x4 Caracter type |
Keyboard: | 6 Generic Function + 8 Navigation |
Communication: | 1x RS485 2/4W Software selectable 1200-9600Pbs 1x RS232 with +5V Power supply (For Radiomodem) |
Dimension: | 150 x 215 x 50 mm |
Temperature: | -30°C / +50°C Non condensating |
